DRS-800

Principle of abrasive belt mechanism
The deburring mechanism of this equipment is a wide-width abrasive belt structure. The abrasive belt mechanism is arranged in a wide and longitudinal direction. It adopts a lifting and abrasive belt deflection mechanism. It can easily perform high-precision drawing, punching and curling of hard burrs on the surface of the workpiece. The abrasive belt rotates at high speed driven by the grinding roller to draw, polish and deburr the surface of the workpiece.

SEND INQUIRY NOW

Technical Specifications

Schematic Diagram

Model

800S

800SS

800SSS

Effective working width

850mm

Deburring thickness

0.5-80mm

Fixed mode

Vacuum fixation/Magnet fixation (optional)

Minimum machining dimension

≥30*30 Magnet fixed table

≥50*50*1 Vacuum fixed table

Feed rate(Frequency conversion adjustable)

0.5-9m/min

Belt speed(Frequency conversion adjustable)

2.2-11m/sec

Belt motor

11kw

11kw  2PCS

11kw  3PCS

Conveyer motor

1.5kw

Bench servo lifting motor

1kw

Compressed air requirement

0.6MPa

Machine weight

1500kg

1900kg

2600kg


Features
Principle of abrasive belt mechanism
The deburring mechanism of this equipment is a wide-width abrasive belt structure. The abrasive belt mechanism is arranged in a wide and longitudinal direction. It adopts a lifting and abrasive belt deflection mechanism. It can easily perform high-precision drawing, punching and curling of hard burrs on the surface of the workpiece. The abrasive belt rotates at high speed driven by the grinding roller to draw, polish and deburr the surface of the workpiece.

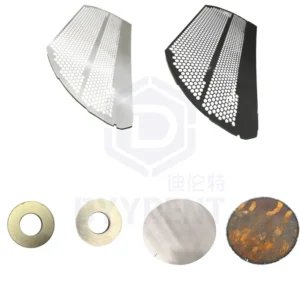

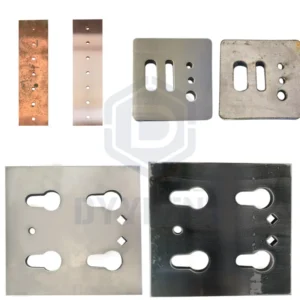

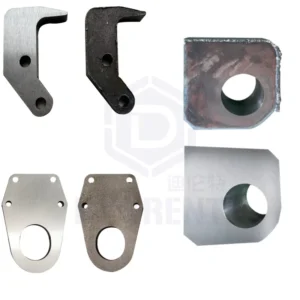

Sample Display

Accessories
