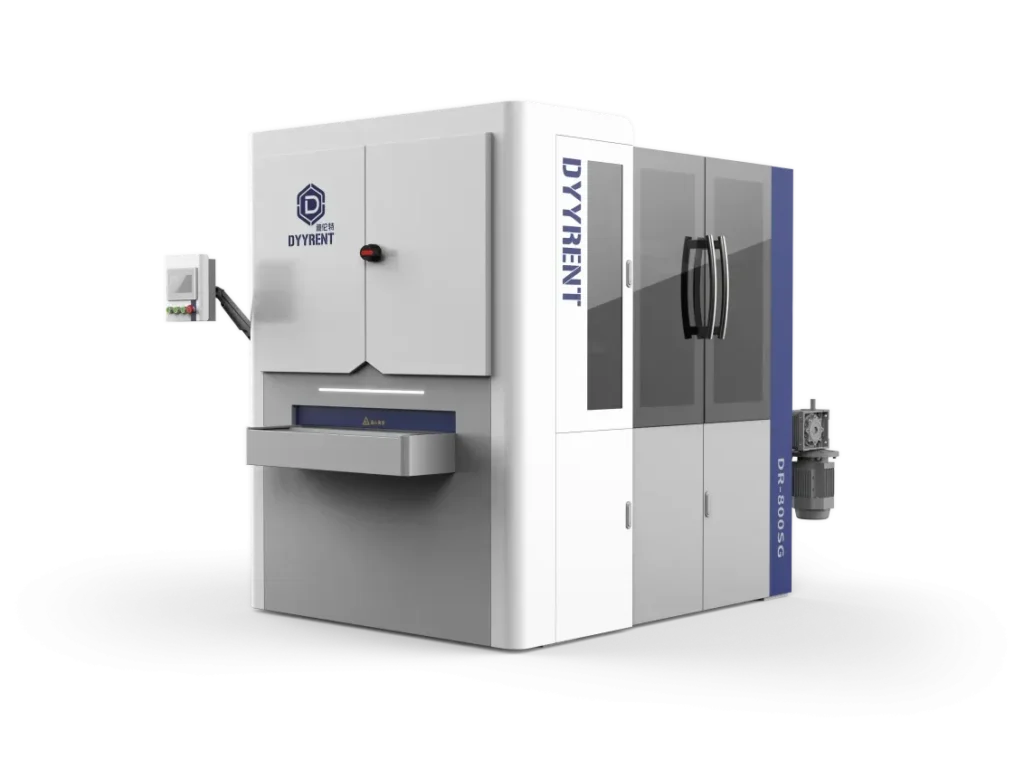

Principle of chamfer mechanism
The grinding mechanism of this equipment is a roller brush mechanism. Driven by the revolution shaft, each roller brush rotates at high speed, and rotates 360° to beat the workpiece, effectively removing the sharp edges of the surface contour of the workpiece, and forming a smooth and beautiful chamfering effect.
|
Technical Specifications |
||||
|
Schematic Diagram |
|
|
|
|
|
Model |
1000G |
1000SG |
1000SGS |
1000SSG |
|
Effective working width |
1050mm |
|||
|
Deburring thickness |
0.5-80mm |
|||
|
Fixed mode |
Vacuum fixation/Magnet fixation (optional) |
|||
|
Minimum machining dimension |
≥30*30 Magnet fixed table |
|||
|
≥50*50*1 Vacuum fixed table |
||||
|
Feed rate（Frequency conversion adjustable） |
0.5-9m/min |
|||
|
Belt speed（Frequency conversion adjustable） |
None |
2.2-11m/sec |
||
|
Revolution speed （Frequency conversion adjustable） |
8-19r/min |
|||
|
Brush speed （Frequency conversion adjustable） |
9-20r/sec |
|||
|
Thousand Wire Roller Quantity |
6 |
|||
|
Revolution machine |
2.2kw |
|||
|
Roller brush motor |
2.2kw 3PCS |
|||
|
Belt motor |
None |
11kw |
11kw 2PCS |
|
|
Conveyer motor |
2.2kw |
|||
|
Roller brush lifting motor |
0.37kw |
|||
|
Bench servo lifting motor |
None |
1kw |
||
|
Compressed air requirement |
0.6MPa |
|||
|
Machine weight |
3000kg |
3300kg |
3500kg |
3500kg |
Features
Principle of chamfer mechanism
The grinding mechanism of this equipment is a roller brush mechanism. Driven by the revolution shaft, each roller brush rotates at high speed, and rotates 360° to beat the workpiece, effectively removing the sharp edges of the surface contour of the workpiece, and forming a smooth and beautiful chamfering effect.
Sample Display
Accessories
